Extrusion Metal

Out-of-spec wall thickness, broken stems, uneven wear on angled ways and unusual wear on dummy blocks – traditional extrusion equipment alignment methods alone typically cannot always solve these issues – but 3D metrology services from MiMsactories can.

B ringing our vast expertise in 3D metrology tools to every job, MiMsactories makes the inspection and alignment of extrusion presses much moreextensive, flexible, efficient, and cost effective.

Our highly trained 3D metrology engineers can take measurements on extrusion presses during short outages.Our methods allow us to measure components of the presses without “looking down the barrel” of a hot press. The alignment results are gathered quickly, precisely, and repeatusing the laser tracker.

Why MiMsactories? When it comes to extrusion presses, we’ve seen every problem there is – and more importantly, we’ve solved them. Using lasertrackers for precision equipment alignment, MiMsactories metrology engineers can inspect for:

Platen-to-platen vertical and horizontal offsetaluminum extrusion press
Platen-to-platen “twist”
Centerline coincidence of ram, container, and die
Travel profile of ram, crosshead, and stem
Ways wear and alignment
Container and die platen movement
Tie rod length
Tie rod extension under load
Dynamic movement of components
Foundation stability studies

In addition, every laser tracker report provides a complete evaluation of the data gathered and 3D drawings produced by the laser tracker system. Our diagnostic reports are the most in-depth and detailed in the industry to help you translate equipment alignment to process improvements with ROI.

Small - medium - high order quantity

Product materials of cast iron, cast steel, super duplex, SST, copper based & aluminum based alloys.

CNC milling (Aluminum, brass, steel, zinc alloy, many others )
Sheet metal (Steel, Aluminum, many others)
Die Casting (ADC12,etc);
Finish :remove bur, sandblast, anodized, painting, printing, plating, high polish, mirror polish, blackening, powder coating, etc.

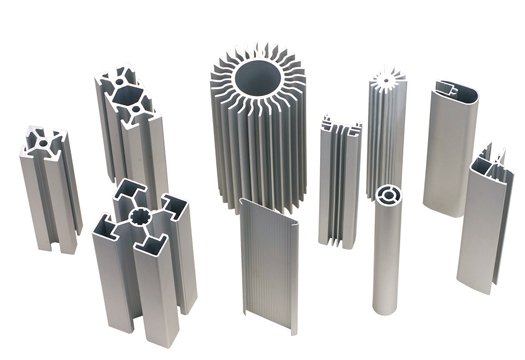

Here below please find some pictures we have made recently:
